How to apply formatting for table rows

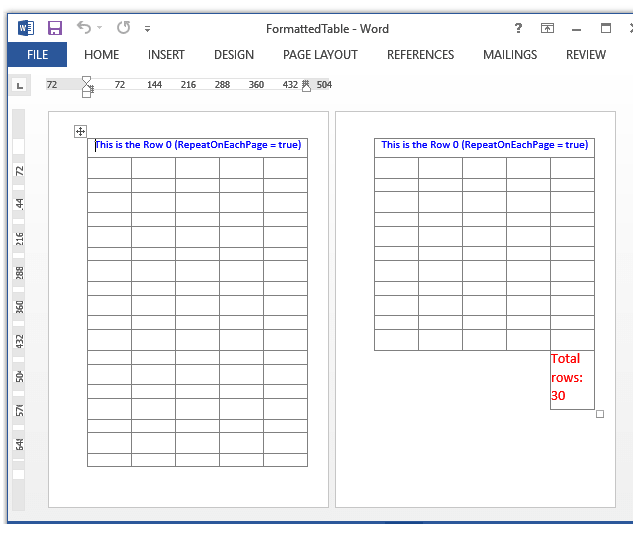

This code example shows how to set a height for a table row, repeat a row as header on each page, shift a row by N columns to the right.

Complete code

using SautinSoft.Document;
using SautinSoft.Document.Drawing;
using SautinSoft.Document.Tables;
using System.Linq;

namespace Example
{
    class Program
    {
        static void Main(string[] args)
        {
            // Get your free 30-day key here:
            // https://sautinsoft.com/start-for-free/

            TableRowFormatting();
        }
        /// <summary>
        /// Shows how to set a height for a table row, repeat a row as header on each page, shift a row by N columns to the right.
        /// </summary>
        /// <remarks>
        /// Details: https://sautinsoft.com/products/document/help/net/developer-guide/tablerow-format.php
        /// </remarks>
        static void TableRowFormatting()
        {
            string docxPath = @"FormattedTable.docx";

            // Let's create document.
            DocumentCore dc = new DocumentCore();

            Section s = new Section(dc);
            dc.Sections.Add(s);


            int rows = 30;
            int columns = 5;

            Table t = new Table(dc, rows, columns);
            t.TableFormat.PreferredWidth = new TableWidth(100, TableWidthUnit.Percentage);
            t.TableFormat.Borders.SetBorders(MultipleBorderTypes.All, BorderStyle.Single, Color.DarkGray, 1);
            t.TableFormat.AutomaticallyResizeToFitContents = false;
            s.Blocks.Add(t);

            // Specify row height:
            // 10 mm - for odd rows.
            // 15 mm - for even rows.
            double oddHeight = LengthUnitConverter.Convert(10, LengthUnit.Millimeter, LengthUnit.Point);
            double evenHeight = LengthUnitConverter.Convert(15, LengthUnit.Millimeter, LengthUnit.Point);
            for (int r = 0; r < t.Rows.Count; r++)
            {
                TableRow row = t.Rows[r];
                if (r % 2 != 0)
                    row.RowFormat.Height = new TableRowHeight(evenHeight, HeightRule.AtLeast);
                else
                    row.RowFormat.Height = new TableRowHeight(oddHeight, HeightRule.AtLeast);
            }

            // Add the table caption - mark the specific row (for example: 0) to repeat on each page.
            TableRow firstRow = t.Rows[0];
            // Repeate as header row at the top of each page.
            // Note: Only the first row in the table can be set up as header.
            firstRow.RowFormat.RepeatOnEachPage = true;

            // Merge all cells into a one in the first row (Caption).
            int colSpan = firstRow.Cells.Count;
            for (int c = firstRow.Cells.Count - 1; c>=1; c--)
            {
                firstRow.Cells.RemoveAt(c);
            }
            // Specify how many columns this cell will take up.
            firstRow.Cells[0].ColumnSpan = colSpan;

            // Set the table caption in the first row and first cell.
            Paragraph p = new Paragraph(dc);
            p.Inlines.Add(new Run(dc, "This is the Row 0 (RepeatOnEachPage = true)", new CharacterFormat() { FontColor = Color.Blue, Size = 20 }));
            p.ParagraphFormat.Alignment = HorizontalAlignment.Center;
            t.Rows[0].Cells[0].Blocks.Add(p);

            // Another interesting properties of TableRowFormat:
            // GridBefore and GridAfter
            // Add "Total" at the end of the table.
            TableRow rowTotal = new TableRow(dc);
            rowTotal.Cells.Add(new TableCell(dc));
            rowTotal.Cells[0].Content.Start.Insert(string.Format("Total rows: {0}", rows), new CharacterFormat() { FontColor = Color.Red, Size = 30 });

            // Shift the rowTotal to the right corner.
            // In our case, shift on 4 columns.
            rowTotal.RowFormat.GridBefore = columns-1;


            rowTotal.RowFormat.Height = new TableRowHeight(evenHeight, HeightRule.AtLeast);
            t.Rows.Add(rowTotal);

            // Save our document into DOCX format.
            dc.Save(docxPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(docxPath) { UseShellExecute = true });
        }
    }
}

Download

Imports SautinSoft.Document
Imports SautinSoft.Document.Drawing
Imports SautinSoft.Document.Tables
Imports System.Linq

Namespace Example
	Friend Class Program
		Shared Sub Main(ByVal args() As String)
			TableRowFormatting()
		End Sub
                ''' Get your free 30-day key here:
                ''' https://sautinsoft.com/start-for-free/
		''' <summary>
		''' Shows how to set a height for a table row, repeat a row as header on each page, shift a row by N columns to the right.
		''' </summary>
		''' <remarks>
		''' Details: https://sautinsoft.com/products/document/help/net/developer-guide/tablerow-format.php
		''' </remarks>
		Private Shared Sub TableRowFormatting()
			Dim docxPath As String = "FormattedTable.docx"

			' Let's create document.
			Dim dc As New DocumentCore()

			Dim s As New Section(dc)
			dc.Sections.Add(s)


			Dim rows As Integer = 30
			Dim columns As Integer = 5

			Dim t As New Table(dc, rows, columns)
			t.TableFormat.PreferredWidth = New TableWidth(100, TableWidthUnit.Percentage)
			t.TableFormat.Borders.SetBorders(MultipleBorderTypes.All, BorderStyle.Single, Color.DarkGray, 1)
			t.TableFormat.AutomaticallyResizeToFitContents = False
			s.Blocks.Add(t)

			' Specify row height:
			' 10 mm - for odd rows.
			' 15 mm - for even rows.
			Dim oddHeight As Double = LengthUnitConverter.Convert(10, LengthUnit.Millimeter, LengthUnit.Point)
			Dim evenHeight As Double = LengthUnitConverter.Convert(15, LengthUnit.Millimeter, LengthUnit.Point)
			For r As Integer = 0 To t.Rows.Count - 1
				Dim row As TableRow = t.Rows(r)
				If r Mod 2 <> 0 Then
					row.RowFormat.Height = New TableRowHeight(evenHeight, HeightRule.AtLeast)
				Else
					row.RowFormat.Height = New TableRowHeight(oddHeight, HeightRule.AtLeast)
				End If
			Next r

			' Add the table caption - mark the specific row (for example: 0) to repeat on each page.
			Dim firstRow As TableRow = t.Rows(0)
			' Repeate as header row at the top of each page.
			' Note: Only the first row in the table can be set up as header.
			firstRow.RowFormat.RepeatOnEachPage = True

			' Merge all cells into a one in the first row (Caption).
			Dim colSpan As Integer = firstRow.Cells.Count
			For c As Integer = firstRow.Cells.Count - 1 To 1 Step -1
				firstRow.Cells.RemoveAt(c)
			Next c
			' Specify how many columns this cell will take up.
			firstRow.Cells(0).ColumnSpan = colSpan

			' Set the table caption in the first row and first cell.
			Dim p As New Paragraph(dc)
			p.Inlines.Add(New Run(dc, "This is the Row 0 (RepeatOnEachPage = true)", New CharacterFormat() With {
				.FontColor = Color.Blue,
				.Size = 20
			}))
			p.ParagraphFormat.Alignment = HorizontalAlignment.Center
			t.Rows(0).Cells(0).Blocks.Add(p)

			' Another interesting properties of TableRowFormat:
			' GridBefore and GridAfter
			' Add "Total" at the end of the table.
			Dim rowTotal As New TableRow(dc)
			rowTotal.Cells.Add(New TableCell(dc))
			rowTotal.Cells(0).Content.Start.Insert(String.Format("Total rows: {0}", rows), New CharacterFormat() With {
				.FontColor = Color.Red,
				.Size = 30
			})

			' Shift the rowTotal to the right corner.
			' In our case, shift on 4 columns.
			rowTotal.RowFormat.GridBefore = columns-1


			rowTotal.RowFormat.Height = New TableRowHeight(evenHeight, HeightRule.AtLeast)
			t.Rows.Add(rowTotal)

			' Save our document into DOCX format.
			dc.Save(docxPath)

			' Open the result for demonstration purposes.
			System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(docxPath) With {.UseShellExecute = True})
		End Sub
	End Class
End Namespace

Download
