How to create an Image document in C# and VB.Net


Let's create a simple Image (PNG) document with two paragraphs containing some formatted text and graphics, like a shown on the picture:

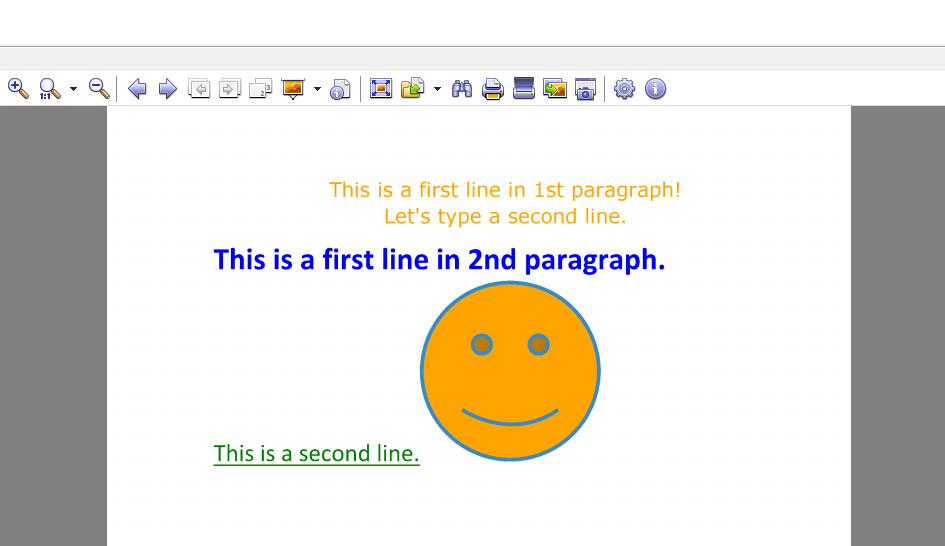

A simple Image (PNG) document

Here we'll you show two ways to create the same Image (PNG) document from a scratch. Use any of them, which is more clear to you:

  1. Using DocumentBuilder.

  2. Using DOM (Document Object Model) directly.

Way 1: Creating a new document using DocumentBuilder

DocumentBuilder is a powerful class that is associated with a DocumentCore and allows dynamic document building from scratch or the addition of new elements to an existing document.

Everything that is possible with DocumentBuilder is also possible when using the classes of the DOM (Document Object Model) directly, but usually require more lines of code than using DocumentBuilder.

        public static void CreateImageUsingDocumentBuilder()
        {
            // Set a path to our document.
            string docPath = @"Result-DocumentBuilder.png";

            // Create a new document and DocumentBuilder.
            DocumentCore dc = new DocumentCore();
            DocumentBuilder db = new DocumentBuilder(dc);

            // Set page size A4.
            Section section = db.Document.Sections[0];
            section.PageSetup.PaperType = PaperType.A4;

            // Add 1st paragraph with formatted text.
            db.CharacterFormat.FontName = "Verdana";
            db.CharacterFormat.Size = 16;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Orange;
            db.Write("This is a first line in 1st paragraph!");
            // Add a line break into the 1st paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            // Add 2nd line to the 1st paragraph, create 2nd paragraph.
            db.Writeln("Let's type a second line.");
            // Specify the paragraph alignment.
            (section.Blocks[0] as Paragraph).ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // Add text into the 2nd paragraph.
            db.CharacterFormat.ClearFormatting();
            db.CharacterFormat.Size = 25;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Blue;
            db.CharacterFormat.Bold = true;
            db.Write("This is a first line in 2nd paragraph.");
            // Insert a line break into the 2nd paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            // Insert 2nd line with own formatting to the 2nd paragraph.
            db.CharacterFormat.Size = 20;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.DarkGreen;
            db.CharacterFormat.UnderlineStyle = UnderlineType.Single;
            db.CharacterFormat.Bold = false;
            db.Write("This is a second line.");

            // Add a graphics figure into the paragraph.
            db.CharacterFormat.ClearFormatting();
            Shape shape = db.InsertShape(SautinSoft.Document.Drawing.Figure.SmileyFace, new SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter));
            // Specify outline and fill.
            shape.Outline.Fill.SetSolid(new SautinSoft.Document.Color("#358CCB"));
            shape.Outline.Width = 3;
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange);

            // Save the 1st document page to the file in PNG format.
            Bitmap page = dc.GetPaginator().Pages[0].Rasterize(300, SautinSoft.Document.Color.White);
            page.Save(docPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(docPath) { UseShellExecute = true });
        }

Way 2: Creating a new document using DOM

The DOM (Document Object Model) is very straightforward and clear, it's an in-memory representation of a Word document.

        public static void CreateImageUsingDOM()
        {
            // Set a path to our document.
            string docPath = @"Result-DocumentCore.png";

            // Create a new document.
            DocumentCore dc = new DocumentCore();

            // Add new section.
            Section section = new Section(dc);
            dc.Sections.Add(section);

            // Let's set page size A4.
            section.PageSetup.PaperType = PaperType.A4;

            // Add two paragraphs
            Paragraph par1 = new Paragraph(dc);
            par1.ParagraphFormat.Alignment = HorizontalAlignment.Center;
            section.Blocks.Add(par1);

            // Let's create a characterformat for text in the 1st paragraph.
            CharacterFormat cf = new CharacterFormat() { FontName = "Verdana", Size = 16, FontColor = SautinSoft.Document.Color.Orange };
            Run run1 = new Run(dc, "This is a first line in 1st paragraph!");
            run1.CharacterFormat = cf;
            par1.Inlines.Add(run1);

            // Let's add a line break into the 1st paragraph.
            par1.Inlines.Add(new SpecialCharacter(dc, SpecialCharacterType.LineBreak));
            // Copy the formatting.
            Run run2 = run1.Clone();
            run2.Text = "Let's type a second line.";
            par1.Inlines.Add(run2);

            // Add 2nd paragraph.
            Paragraph par2 = new Paragraph(dc, new Run(dc, "This is a first line in 2nd paragraph.", new CharacterFormat() { Size = 25, FontColor = SautinSoft.Document.Color.Blue, Bold = true }));
            section.Blocks.Add(par2);
            SpecialCharacter lBr = new SpecialCharacter(dc, SpecialCharacterType.LineBreak);
            par2.Inlines.Add(lBr);
            Run run3 = new Run(dc, "This is a second line.", new CharacterFormat() { Size = 20, FontColor = SautinSoft.Document.Color.DarkGreen, UnderlineStyle = UnderlineType.Single });
            par2.Inlines.Add(run3);

            // Add a graphics figure into the paragraph.
            Shape shape = new Shape(dc, new InlineLayout(new SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter)));
            // Specify outline and fill.
            shape.Outline.Fill.SetSolid(new  SautinSoft.Document.Color("#358CCB"));
            shape.Outline.Width = 3;
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange);
            shape.Geometry.SetPreset(Figure.SmileyFace);
            par2.Inlines.Add(shape);

            // Save the 1st document page to the file in PNG format.
            Bitmap page = dc.GetPaginator().Pages[0].Rasterize(300, SautinSoft.Document.Color.White);
            page.Save(docPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(docPath) {UseShellExecute=true});
        }

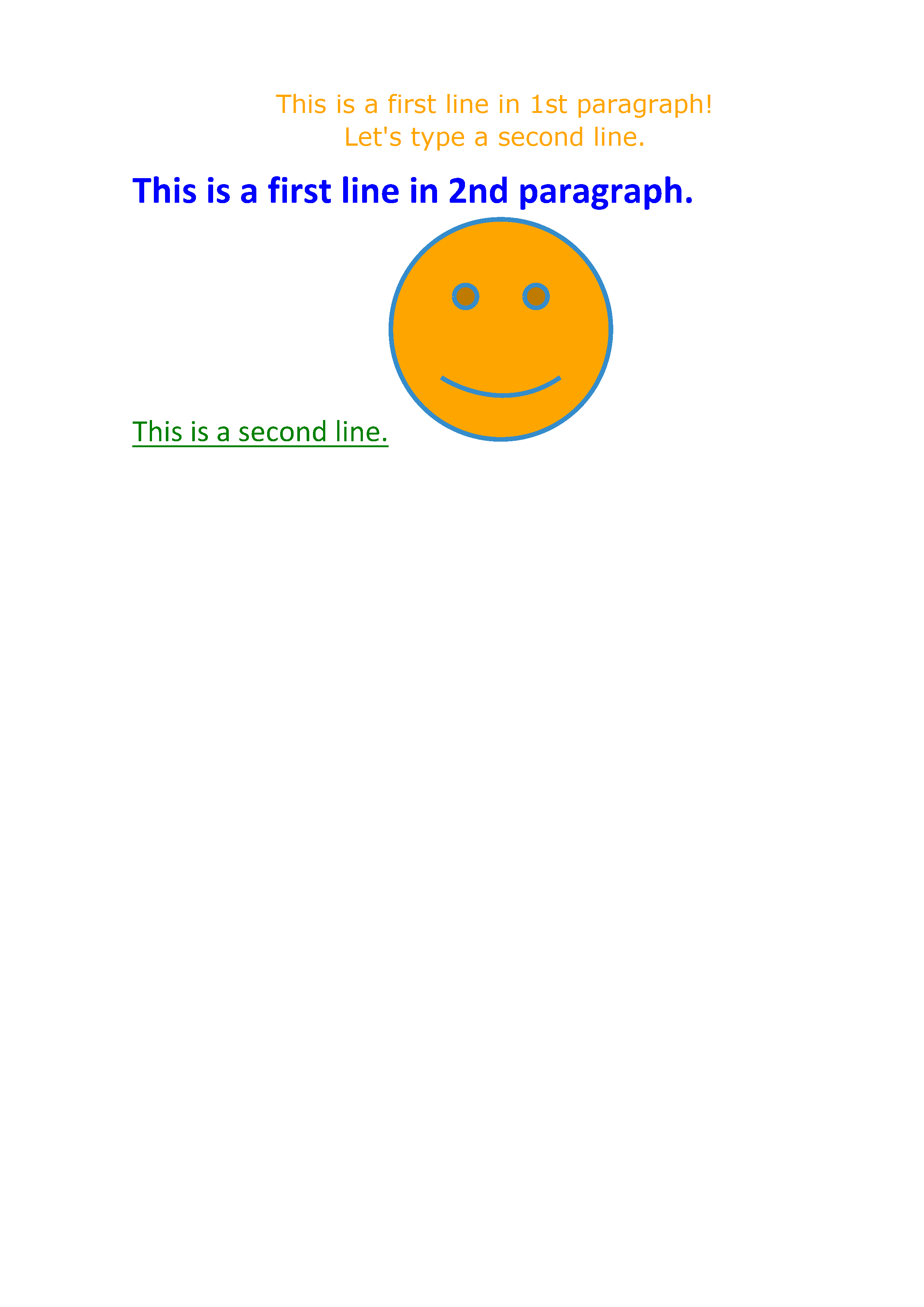

As you may see, in the method Rasterize() we've specified the DPI and Color as parameters. See other examples to Save a document as image.



Complete code

using SautinSoft.Document;
using SautinSoft.Document.Drawing;
using System.Drawing;

namespace Example
{
    class Program
    {
        static void Main(string[] args)
        {
            // Here we'll show two ways to create Image document from a scratch.
            // Use any of them, which is more clear to you.

            // 1. With help of DocumentBuilder (wizard).
            CreateImageUsingDocumentBuilder();

            // 2. With Document Object Model (DOM) directly.
            CreateImageUsingDOM();
        }
        /// <summary>
        /// Creates a new Image document using DocumentBuilder wizard.
        /// </summary>
        /// <remarks>
        /// Details: https://sautinsoft.com/products/document/help/net/developer-guide/create-image-document-net-csharp-vb.php
        /// </remarks>
        public static void CreateImageUsingDocumentBuilder()
        {
            // Set a path to our document.
            string docPath = @"Result-DocumentBuilder.png";

            // Create a new document and DocumentBuilder.
            DocumentCore dc = new DocumentCore();
            DocumentBuilder db = new DocumentBuilder(dc);

            // Set page size A4.
            Section section = db.Document.Sections[0];
            section.PageSetup.PaperType = PaperType.A4;

            // Add 1st paragraph with formatted text.
            db.CharacterFormat.FontName = "Verdana";
            db.CharacterFormat.Size = 16;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Orange;
            db.Write("This is a first line in 1st paragraph!");
            // Add a line break into the 1st paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            // Add 2nd line to the 1st paragraph, create 2nd paragraph.
            db.Writeln("Let's type a second line.");
            // Specify the paragraph alignment.
            (section.Blocks[0] as Paragraph).ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // Add text into the 2nd paragraph.
            db.CharacterFormat.ClearFormatting();
            db.CharacterFormat.Size = 25;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Blue;
            db.CharacterFormat.Bold = true;
            db.Write("This is a first line in 2nd paragraph.");
            // Insert a line break into the 2nd paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            // Insert 2nd line with own formatting to the 2nd paragraph.
            db.CharacterFormat.Size = 20;
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.DarkGreen;
            db.CharacterFormat.UnderlineStyle = UnderlineType.Single;
            db.CharacterFormat.Bold = false;
            db.Write("This is a second line.");

            // Add a graphics figure into the paragraph.
            db.CharacterFormat.ClearFormatting();
            Shape shape = db.InsertShape(SautinSoft.Document.Drawing.Figure.SmileyFace, new SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter));
            // Specify outline and fill.
            shape.Outline.Fill.SetSolid(new SautinSoft.Document.Color("#358CCB"));
            shape.Outline.Width = 3;
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange);

            // Save the 1st document page to the file in PNG format.
            Bitmap page = dc.GetPaginator().Pages[0].Rasterize(300, SautinSoft.Document.Color.White);
            page.Save(docPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(docPath) { UseShellExecute = true });
        }


        /// <summary>
        /// Creates a new Image document using DOM directly.
        /// </summary>
        /// <remarks>
        /// Details: https://sautinsoft.com/products/document/help/net/developer-guide/create-image-document-net-csharp-vb.php
        /// </remarks>
        public static void CreateImageUsingDOM()
        {
            // Set a path to our document.
            string docPath = @"Result-DocumentCore.png";

            // Create a new document.
            DocumentCore dc = new DocumentCore();

            // Add new section.
            Section section = new Section(dc);
            dc.Sections.Add(section);

            // Let's set page size A4.
            section.PageSetup.PaperType = PaperType.A4;

            // Add two paragraphs
            Paragraph par1 = new Paragraph(dc);
            par1.ParagraphFormat.Alignment = HorizontalAlignment.Center;
            section.Blocks.Add(par1);

            // Let's create a characterformat for text in the 1st paragraph.
            CharacterFormat cf = new CharacterFormat() { FontName = "Verdana", Size = 16, FontColor = SautinSoft.Document.Color.Orange };
            Run run1 = new Run(dc, "This is a first line in 1st paragraph!");
            run1.CharacterFormat = cf;
            par1.Inlines.Add(run1);

            // Let's add a line break into the 1st paragraph.
            par1.Inlines.Add(new SpecialCharacter(dc, SpecialCharacterType.LineBreak));
            // Copy the formatting.
            Run run2 = run1.Clone();
            run2.Text = "Let's type a second line.";
            par1.Inlines.Add(run2);

            // Add 2nd paragraph.
            Paragraph par2 = new Paragraph(dc, new Run(dc, "This is a first line in 2nd paragraph.", new CharacterFormat() { Size = 25, FontColor = SautinSoft.Document.Color.Blue, Bold = true }));
            section.Blocks.Add(par2);
            SpecialCharacter lBr = new SpecialCharacter(dc, SpecialCharacterType.LineBreak);
            par2.Inlines.Add(lBr);
            Run run3 = new Run(dc, "This is a second line.", new CharacterFormat() { Size = 20, FontColor = SautinSoft.Document.Color.DarkGreen, UnderlineStyle = UnderlineType.Single });
            par2.Inlines.Add(run3);

            // Add a graphics figure into the paragraph.
            Shape shape = new Shape(dc, new InlineLayout(new SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter)));
            // Specify outline and fill.
            shape.Outline.Fill.SetSolid(new  SautinSoft.Document.Color("#358CCB"));
            shape.Outline.Width = 3;
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange);
            shape.Geometry.SetPreset(Figure.SmileyFace);
            par2.Inlines.Add(shape);

            // Save the 1st document page to the file in PNG format.
            Bitmap page = dc.GetPaginator().Pages[0].Rasterize(300, SautinSoft.Document.Color.White);
            page.Save(docPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(docPath) {UseShellExecute=true});
        }
    }
}

Download.


            Imports SautinSoft.Document
Imports SautinSoft.Document.Drawing
Imports System.Drawing

Namespace Example
    Friend Class Program
        Shared Sub Main(ByVal args() As String)
            ' Here we'll show two ways to create Image document from a scratch.
            ' Use any of them, which is more clear to you.

            ' 1. With help of DocumentBuilder (wizard).
            CreateImageUsingDocumentBuilder()

            ' 2. With Document Object Model (DOM) directly.
            CreateImageUsingDOM()
        End Sub
        ''' <summary>
        ''' Creates a new Image document using DocumentBuilder wizard.
        ''' </summary>
        ''' <remarks>
        ''' Details: https://sautinsoft.com/products/document/help/net/developer-guide/create-image-document-net-csharp-vb.php
        ''' </remarks>
        Public Shared Sub CreateImageUsingDocumentBuilder()
            ' Set a path to our document.
            Dim docPath As String = "Result-DocumentBuilder.png"

            ' Create a new document and DocumentBuilder.
            Dim dc As New DocumentCore()
            Dim db As New DocumentBuilder(dc)

            ' Set page size A4.
            Dim section As Section = db.Document.Sections(0)
            section.PageSetup.PaperType = PaperType.A4

            ' Add 1st paragraph with formatted text.
            db.CharacterFormat.FontName = "Verdana"
            db.CharacterFormat.Size = 16
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Orange
            db.Write("This is a first line in 1st paragraph!")
            ' Add a line break into the 1st paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
            ' Add 2nd line to the 1st paragraph, create 2nd paragraph.
            db.Writeln("Let's type a second line.")
            ' Specify the paragraph alignment.
            TryCast(section.Blocks(0), Paragraph).ParagraphFormat.Alignment = HorizontalAlignment.Center

            ' Add text into the 2nd paragraph.
            db.CharacterFormat.ClearFormatting()
            db.CharacterFormat.Size = 25
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.Blue
            db.CharacterFormat.Bold = True
            db.Write("This is a first line in 2nd paragraph.")
            ' Insert a line break into the 2nd paragraph.
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
            ' Insert 2nd line with own formatting to the 2nd paragraph.
            db.CharacterFormat.Size = 20
            db.CharacterFormat.FontColor = SautinSoft.Document.Color.DarkGreen
            db.CharacterFormat.UnderlineStyle = UnderlineType.Single
            db.CharacterFormat.Bold = False
            db.Write("This is a second line.")

            ' Add a graphics figure into the paragraph.
            db.CharacterFormat.ClearFormatting()
            Dim shape As Shape = db.InsertShape(SautinSoft.Document.Drawing.Figure.SmileyFace, New SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter))
            ' Specify outline and fill.
            shape.Outline.Fill.SetSolid(New SautinSoft.Document.Color("#358CCB"))
            shape.Outline.Width = 3
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange)

            ' Save the 1st document page to the file in PNG format.
            Dim page As Bitmap = dc.GetPaginator().Pages(0).Rasterize(300, SautinSoft.Document.Color.White)
            page.Save(docPath)

            ' Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(docPath) With {.UseShellExecute = True})
        End Sub


        ''' <summary>
        ''' Creates a new Image document using DOM directly.
        ''' </summary>
        ''' <remarks>
        ''' Details: https://sautinsoft.com/products/document/help/net/developer-guide/create-image-document-net-csharp-vb.php
        ''' </remarks>
        Public Shared Sub CreateImageUsingDOM()
            ' Set a path to our document.
            Dim docPath As String = "Result-DocumentCore.png"

            ' Create a new document.
            Dim dc As New DocumentCore()

            ' Add new section.
            Dim section As New Section(dc)
            dc.Sections.Add(section)

            ' Let's set page size A4.
            section.PageSetup.PaperType = PaperType.A4

            ' Add two paragraphs
            Dim par1 As New Paragraph(dc)
            par1.ParagraphFormat.Alignment = HorizontalAlignment.Center
            section.Blocks.Add(par1)

            ' Let's create a characterformat for text in the 1st paragraph.
            Dim cf As New CharacterFormat() With {
                .FontName = "Verdana",
                .Size = 16,
                .FontColor = SautinSoft.Document.Color.Orange
            }
            Dim run1 As New Run(dc, "This is a first line in 1st paragraph!")
            run1.CharacterFormat = cf
            par1.Inlines.Add(run1)

            ' Let's add a line break into the 1st paragraph.
            par1.Inlines.Add(New SpecialCharacter(dc, SpecialCharacterType.LineBreak))
            ' Copy the formatting.
            Dim run2 As Run = run1.Clone()
            run2.Text = "Let's type a second line."
            par1.Inlines.Add(run2)

            ' Add 2nd paragraph.
            Dim par2 As Paragraph = New Paragraph(dc, New Run(dc, "This is a first line in 2nd paragraph.", New CharacterFormat() With {
                .Size = 25,
                .FontColor = SautinSoft.Document.Color.Blue,
                .Bold = True
            }))
            section.Blocks.Add(par2)
            Dim lBr As New SpecialCharacter(dc, SpecialCharacterType.LineBreak)
            par2.Inlines.Add(lBr)
            Dim run3 As Run = New Run(dc, "This is a second line.", New CharacterFormat() With {
                .Size = 20,
                .FontColor = SautinSoft.Document.Color.DarkGreen,
                .UnderlineStyle = UnderlineType.Single
            })
            par2.Inlines.Add(run3)

            ' Add a graphics figure into the paragraph.
            Dim shape As New Shape(dc, New InlineLayout(New SautinSoft.Document.Drawing.Size(50, 50, LengthUnit.Millimeter)))
            ' Specify outline and fill.
            shape.Outline.Fill.SetSolid(New SautinSoft.Document.Color("#358CCB"))
            shape.Outline.Width = 3
            shape.Fill.SetSolid(SautinSoft.Document.Color.Orange)
            shape.Geometry.SetPreset(Figure.SmileyFace)
            par2.Inlines.Add(shape)

            ' Save the 1st document page to the file in PNG format.
            Dim page As Bitmap = dc.GetPaginator().Pages(0).Rasterize(300, SautinSoft.Document.Color.White)
            page.Save(docPath)

            ' Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(docPath) With {.UseShellExecute = True})
        End Sub
    End Class
End Namespace

Download.


If you need a new code example or have a question: email us at support@sautinsoft.com or ask at Online Chat (right-bottom corner of this page) or use the Form below:



Questions and suggestions from you are always welcome!

We are developing .Net components since 2002. We know PDF, DOCX, RTF, HTML, XLSX and Images formats. If you need any assistance with creating, modifying or converting documents in various formats, we can help you. We will write any code example for you absolutely free.
