Insert images on each page of the PDF file
in C# and VB.Net


Our customer has sent a request to us: how to place an image in different places on each page of a document.


Complete code

using System.IO;
using System.Collections.Generic;
using SautinSoft.Document;
using SautinSoft.Document.Drawing;

namespace Example
{
    class Program
    {
        static void Main(string[] args)
        {
            InsertImagesOnEachPage();
        }
        /// <summary>
        /// Insert images on each page of the PDF file.
        /// </summary>
        /// <remarks>
        /// Details: https://www.sautinsoft.com/products/document/help/net/developer-guide/from-customers-insert-images-on-each-document-page-csharp-vb-net.php
        /// </remarks>
        static void InsertImagesOnEachPage()
        {

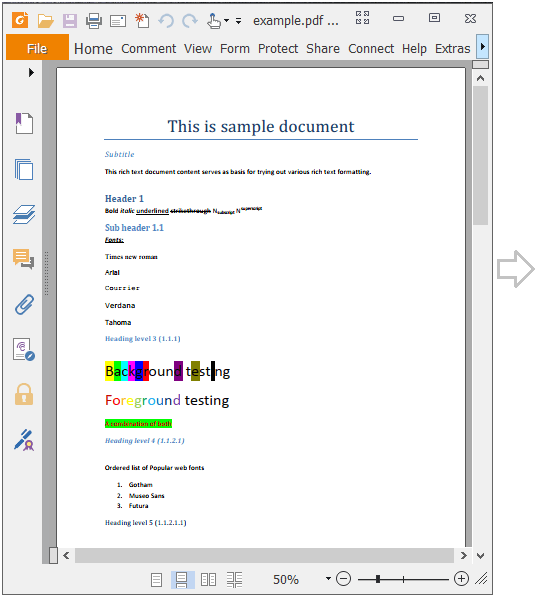

            string inpfFile = @"..\..\example.pdf";
            string pctFile = @"..\..\signature.png";
            string outFile = @"Result.pdf";

            // This example is acceptable for PDF documents.
            // Because when we're loading PDF documents using DocumentCore the each PDF-page
            // we'll be stored in own Section object.
            // In other words, the each Section represents the separate PDF-page.
            DocumentCore dc = DocumentCore.Load(inpfFile);

            // Load the Picture from a file.
            Picture pict = new Picture(dc, pctFile);

            // In this example we'll place the image in three (3)
            // different places on each page of the document.

            // Let's create three layouts
            List<Layout> layouts = new List<Layout>()
            {
                // Layout 1.
                // Horizontal: 10mm from page left.
                // Vertical: 260mm from top margin.
                // Size: 2cm * 1 cm.
                FloatingLayout.Floating(
                new HorizontalPosition(10, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
                new VerticalPosition(260, LengthUnit.Millimeter, VerticalPositionAnchor.TopMargin),
                new Size(LengthUnitConverter.Convert(2, LengthUnit.Centimeter, LengthUnit.Point),
                         LengthUnitConverter.Convert(1, LengthUnit.Centimeter, LengthUnit.Point))
                         ),
                // Layout 2.
                // Horizontal: 180mm from page left.
                // Vertical: 10mm from top margin.
                // Size: 3cm * 2cm.
                FloatingLayout.Floating(
                new HorizontalPosition(180, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
                new VerticalPosition(10, LengthUnit.Millimeter, VerticalPositionAnchor.TopMargin),
                new Size(LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point),
                         LengthUnitConverter.Convert(2, LengthUnit.Centimeter, LengthUnit.Point))
                         ),
                // Layout 3.
                // Horizontal: 150mm from page left.
                // Vertical: 150mm from page top.
                // Size: 3cm * 3cm.
                FloatingLayout.Floating(
                new HorizontalPosition(150, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
                new VerticalPosition(150, LengthUnit.Millimeter, VerticalPositionAnchor.Page),
                new Size(LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point),
                         LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point))
                         )};

            // Iterate by Sections (PDF pages in our case).
            foreach (Section s in dc.Sections)
            {
                // Insert our pictures in different places.
                foreach (FloatingLayout fl in layouts)
                {
                    pict.Layout = new FloatingLayout(fl.HorizontalPosition, fl.VerticalPosition, fl.Size);

                    // Place the picture behind the text.
                    (pict.Layout as FloatingLayout).WrappingStyle = WrappingStyle.BehindText;

                    // Here we insert the Picture content at the 1st Block element (Paragraph or Table).
                    s.Blocks[0].Content.Start.Insert(pict.Content);
                }
            }

            dc.Save(outFile, new PdfSaveOptions());

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(outFile) { UseShellExecute = true });
        }
    }
}

Download.


            Imports System.IO
Imports System.Collections.Generic
Imports SautinSoft.Document
Imports SautinSoft.Document.Drawing

Namespace Example
	Friend Class Program
		Shared Sub Main(ByVal args() As String)
			InsertImagesOnEachPage()
		End Sub
		''' <summary>
		''' Insert images on each page of the PDF file.
		''' </summary>
		''' <remarks>
		''' Details: https://www.sautinsoft.com/products/document/help/net/developer-guide/from-customers-insert-images-on-each-document-page-csharp-vb-net.php
		''' </remarks>
		Private Shared Sub InsertImagesOnEachPage()
			Dim inpfFile As String = "..\example.pdf"
			Dim pctFile As String = "..\signature.png"
			Dim outFile As String = "Result.pdf"

			' This example is acceptable for PDF documents.
			' Because when we're loading PDF documents using DocumentCore the each PDF-page
			' we'll be stored in own Section object.
			' In other words, the each Section represents the separate PDF-page.
			Dim dc As DocumentCore = DocumentCore.Load(inpfFile)

			' Load the Picture from a file.
			Dim pict As New Picture(dc, pctFile)

			' In this example we'll place the image in three (3)
			' different places on each page of the document.

			' Let's create three layouts
			Dim layouts As New List(Of Layout)()
			From {FloatingLayout.Floating(New HorizontalPosition(10, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
			New VerticalPosition(260, LengthUnit.Millimeter, VerticalPositionAnchor.TopMargin),
			New Size(LengthUnitConverter.Convert(2, LengthUnit.Centimeter, LengthUnit.Point),
			LengthUnitConverter.Convert(1, LengthUnit.Centimeter, LengthUnit.Point))),

			FloatingLayout.Floating(New HorizontalPosition(180, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
			New VerticalPosition(10, LengthUnit.Millimeter, VerticalPositionAnchor.TopMargin),
			New Size(LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point),
			LengthUnitConverter.Convert(2, LengthUnit.Centimeter, LengthUnit.Point))),

			FloatingLayout.Floating(New HorizontalPosition(150, LengthUnit.Millimeter, HorizontalPositionAnchor.Page),
			New VerticalPosition(150, LengthUnit.Millimeter, VerticalPositionAnchor.Page),
			New Size(LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point),
			LengthUnitConverter.Convert(3, LengthUnit.Centimeter, LengthUnit.Point)))}

			' Iterate by Sections (PDF pages in our case).
			For Each s As Section In dc.Sections
				' Insert our pictures in different places.
				For Each fl As FloatingLayout In layouts
					pict.Layout = New FloatingLayout(fl.HorizontalPosition, fl.VerticalPosition, fl.Size)

					' Place the picture behind the text.
					TryCast(pict.Layout, FloatingLayout).WrappingStyle = WrappingStyle.BehindText

					' Here we insert the Picture content at the 1st Block element (Paragraph or Table).
					s.Blocks(0).Content.Start.Insert(pict.Content)
				Next fl
			Next s

			dc.Save(outFile, New PdfSaveOptions())

			' Open the result for demonstration purposes.
			System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(outFile) With {.UseShellExecute = True})
		End Sub
	End Class
End Namespace

Download.
