Create a new document with various table borders using C# and .NET

  1. Add SautinSoft.Document from Nuget.
  2. Create a new document.
  3. Add tables with custom borders and formatting.
  4. Save the document as PDF.

Create the simple report using DocumentBuilder and saves it in a desired format. Added support for various table borders: wavy, dash-dotted, discontinuous, etc.

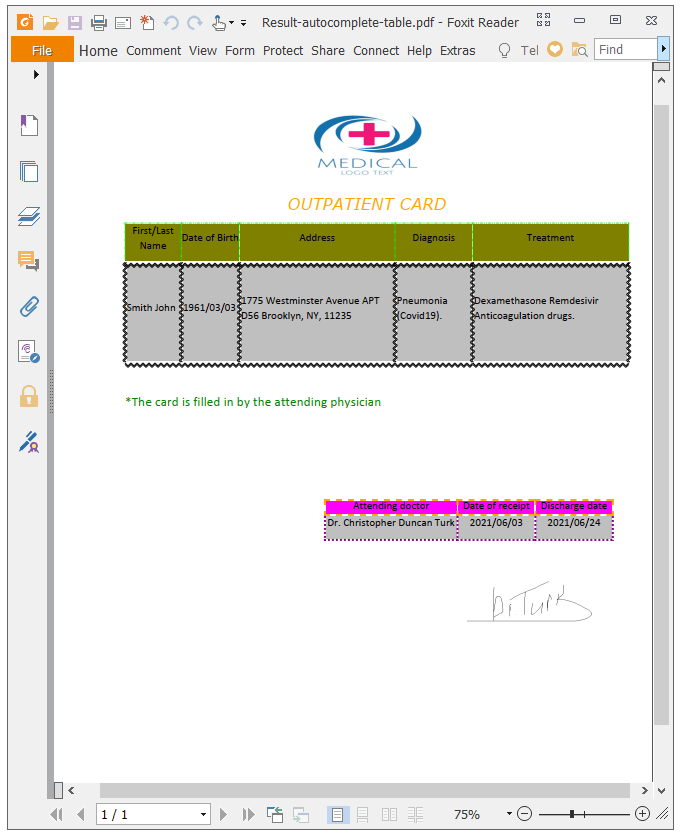

Download the resulting file: Result autocomplete table.pdf

Complete code

using System;
using SautinSoft.Document;
using SautinSoft.Document.Tables;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using SautinSoft.Document.Drawing;

namespace Example
{
    class Program
    {
        static void Main(string[] args)
        {
            // Get your free 100-day key here:
            // https://sautinsoft.com/start-for-free/

            TableVariousBorders();
        }
        /// <summary>
        /// The simple report using DocumentBuilder and saves it in a desired format.
        /// </summary>
        /// <remarks>
        /// Details: https://www.sautinsoft.com/products/document/help/net/developer-guide/from-customers-create-document-with-various-table-borders-in-csharp-vb-net.php
        /// </remarks>

        static void TableVariousBorders()
        {
            DocumentCore dc = new DocumentCore();
            DocumentBuilder db = new DocumentBuilder(dc);

            // The Picture for visualization.
            Picture logo = db.InsertImage(@"..\..\..\medical.png", new Size(50, 25, LengthUnit.Millimeter));
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);

            // Insert the formatted text into the document using DocumentBuilder.
            db.CharacterFormat.FontName = "Verdana";
            db.CharacterFormat.Size = 16.5f;
            db.CharacterFormat.AllCaps = true;
            db.CharacterFormat.Italic = true;
            db.CharacterFormat.FontColor = Color.Orange;

            db.ParagraphFormat.Alignment = HorizontalAlignment.Center;
            db.Writeln("Outpatient card");

            // This method will clear all directly set formatting values.
            db.ParagraphFormat.ClearFormatting();
            db.CharacterFormat.ClearFormatting();

            // Data Source: SQL, DB, ACCESS, Data Array, etc.
            string namepatient = "Smith John";
            string namedoctor = "Dr. Christopher Duncan Turk";
            string dateofreceipt = "2021/06/03";
            string dischargedate = "2021/06/24";
            string year = "1961/03/03";
            string address = "1775 Westminster Avenue APT D56 Brooklyn, NY, 11235";
            string diagnosis = "Pneumonia (Covid19).";
            string treatment = "Dexamethasone Remdesivir Anticoagulation drugs.";

            // Create a new table with preferred width.
            Table maintable = db.StartTable();
            db.TableFormat.PreferredWidth = new TableWidth(LengthUnitConverter.Convert(7, LengthUnit.Inch, LengthUnit.Point), TableWidthUnit.Point);

            // Specify formatting of cells and alignment.
            db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.DotDotDash, Color.Green, 1);
            db.CellFormat.BackgroundColor = Color.DarkYellow;
            db.CellFormat.VerticalAlignment = VerticalAlignment.Center;
            db.ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // Specify height of rows and write text.
            db.RowFormat.Height = new TableRowHeight(45f, HeightRule.Auto);

            db.InsertCell();
            db.Write("First/Last Name");
            db.InsertCell();
            db.Write("Date of Birth ");
            db.InsertCell();
            db.Write("Address");
            db.InsertCell();
            db.Write("Diagnosis");
            db.InsertCell();
            db.Write("Treatment");
            db.EndRow();

            // Specify formatting of cells and alignment.
            db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.DoubleWave, Color.Black, 1);
            db.CellFormat.BackgroundColor = Color.LightGray;
            db.CellFormat.VerticalAlignment = VerticalAlignment.Center;
            db.ParagraphFormat.Alignment = HorizontalAlignment.Left;

            // Specify height of rows and write text.
            db.RowFormat.Height = new TableRowHeight(100f, HeightRule.Exact);
            db.InsertCell();
            db.Write(namepatient);
            db.InsertCell();
            db.Write(year);
            db.InsertCell();
            db.Write(address);
            db.InsertCell();
            db.Write(diagnosis);
            db.InsertCell();
            db.Write(treatment);
            db.EndRow();
            db.EndTable();

            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);

            // Insert the formatted text into the document using DocumentBuilder.
            db.CharacterFormat.FontName = "Calibri";
            db.CharacterFormat.Size = 13.5f;
            db.CharacterFormat.FontColor = Color.DarkGreen;
            db.ParagraphFormat.SpecialIndentation = 100;
            db.Writeln("*The card is filled in by the attending physician ");
            db.ParagraphFormat.ClearFormatting();
            db.CharacterFormat.ClearFormatting();
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);

            Table addtable = db.StartTable();
            db.TableFormat.IndentFromLeft = 200;
            db.TableFormat.PreferredWidth = new TableWidth(LengthUnitConverter.Convert(4, LengthUnit.Inch, LengthUnit.Point), TableWidthUnit.Point);

            // Specify formatting of cells and alignment.
            db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.Dashed, Color.Orange, 2);
            db.CellFormat.BackgroundColor = Color.Magenta;
            db.CellFormat.VerticalAlignment = VerticalAlignment.Center;
            db.ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // Specify height of rows and write text.
            db.RowFormat.Height = new TableRowHeight(15f, HeightRule.Exact);

            db.InsertCell();
            db.Write("Attending doctor");
            db.InsertCell();
            db.Write("Date of receipt");
            db.InsertCell();
            db.Write("Discharge date");
            db.EndRow();

            // Specify formatting of cells and alignment.
            db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.Dotted, Color.Purple, 2);
            db.CellFormat.BackgroundColor = Color.LightGray;
            db.CellFormat.VerticalAlignment = VerticalAlignment.Top;
            db.ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // Specify height of rows and write text.
            db.RowFormat.Height = new TableRowHeight(25f, HeightRule.Exact);
            db.InsertCell();
            db.Write(namedoctor);
            db.InsertCell();
            db.Write(dateofreceipt);
            db.InsertCell();
            db.Write(dischargedate);
            db.EndRow();
            db.EndTable();

            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);
            db.InsertSpecialCharacter(SpecialCharacterType.LineBreak);

            db.ParagraphFormat.Alignment = HorizontalAlignment.Right;
            Picture sign = db.InsertImage(@"..\..\..\sign.png", new Size(50, 25, LengthUnit.Millimeter));

            // Save our document into PDF format.
            string filePath = "Result.pdf";
            dc.Save(filePath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(filePath) { UseShellExecute = true });
        }
    }
}

Download

Imports System
Imports SautinSoft.Document
Imports SautinSoft.Document.Tables
Imports System.Collections.Generic
Imports System.Linq
Imports System.Text
Imports System.Threading.Tasks
Imports SautinSoft.Document.Drawing

Namespace Example
	Friend Class Program
		Shared Sub Main(ByVal args() As String)
			TableVariousBorders()
		End Sub
                ''' Get your free 100-day key here:
                ''' https://sautinsoft.com/start-for-free/
		''' <summary>
		''' The simple report using DocumentBuilder and saves it in a desired format.
		''' </summary>
		''' <remarks>
		''' Details: https://www.sautinsoft.com/products/document/help/net/developer-guide/from-customers-create-document-with-various-table-borders-in-csharp-vb-net.php
		''' </remarks>

		Private Shared Sub TableVariousBorders()
			Dim dc As New DocumentCore()
			Dim db As New DocumentBuilder(dc)

			' The Picture for visualization.
			Dim logo As Picture = db.InsertImage("..\..\..\medical.png", New Size(50, 25, LengthUnit.Millimeter))
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)

			' Insert the formatted text into the document using DocumentBuilder.
			db.CharacterFormat.FontName = "Verdana"
			db.CharacterFormat.Size = 16.5F
			db.CharacterFormat.AllCaps = True
			db.CharacterFormat.Italic = True
			db.CharacterFormat.FontColor = Color.Orange

			db.ParagraphFormat.Alignment = HorizontalAlignment.Center
			db.Writeln("Outpatient card")

			' This method will clear all directly set formatting values.
			db.ParagraphFormat.ClearFormatting()
			db.CharacterFormat.ClearFormatting()

			' Data Source: SQL, DB, ACCESS, Data Array, etc.
			Dim namepatient As String = "Smith John"
			Dim namedoctor As String = "Dr. Christopher Duncan Turk"
			Dim dateofreceipt As String = "2021/06/03"
			Dim dischargedate As String = "2021/06/24"
			Dim year As String = "1961/03/03"
			Dim address As String = "1775 Westminster Avenue APT D56 Brooklyn, NY, 11235"
			Dim diagnosis As String = "Pneumonia (Covid19)."
			Dim treatment As String = "Dexamethasone Remdesivir Anticoagulation drugs."

			' Create a new table with preferred width.
			Dim maintable As Table = db.StartTable()
			db.TableFormat.PreferredWidth = New TableWidth(LengthUnitConverter.Convert(7, LengthUnit.Inch, LengthUnit.Point), TableWidthUnit.Point)

			' Specify formatting of cells and alignment.
			db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.DotDotDash, Color.Green, 1)
			db.CellFormat.BackgroundColor = Color.DarkYellow
			db.CellFormat.VerticalAlignment = VerticalAlignment.Center
			db.ParagraphFormat.Alignment = HorizontalAlignment.Center

			' Specify height of rows and write text.
			db.RowFormat.Height = New TableRowHeight(45.0F, HeightRule.Auto)

			db.InsertCell()
			db.Write("First/Last Name")
			db.InsertCell()
			db.Write("Date of Birth ")
			db.InsertCell()
			db.Write("Address")
			db.InsertCell()
			db.Write("Diagnosis")
			db.InsertCell()
			db.Write("Treatment")
			db.EndRow()

			' Specify formatting of cells and alignment.
			db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.DoubleWave, Color.Black, 1)
			db.CellFormat.BackgroundColor = Color.LightGray
			db.CellFormat.VerticalAlignment = VerticalAlignment.Center
			db.ParagraphFormat.Alignment = HorizontalAlignment.Left

			' Specify height of rows and write text.
			db.RowFormat.Height = New TableRowHeight(100.0F, HeightRule.Exact)
			db.InsertCell()
			db.Write(namepatient)
			db.InsertCell()
			db.Write(year)
			db.InsertCell()
			db.Write(address)
			db.InsertCell()
			db.Write(diagnosis)
			db.InsertCell()
			db.Write(treatment)
			db.EndRow()
			db.EndTable()

			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)

			' Insert the formatted text into the document using DocumentBuilder.
			db.CharacterFormat.FontName = "Calibri"
			db.CharacterFormat.Size = 13.5F
			db.CharacterFormat.FontColor = Color.DarkGreen
			db.ParagraphFormat.SpecialIndentation = 100
			db.Writeln("*The card is filled in by the attending physician ")
			db.ParagraphFormat.ClearFormatting()
			db.CharacterFormat.ClearFormatting()
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)

			Dim addtable As Table = db.StartTable()
			db.TableFormat.IndentFromLeft = 200
			db.TableFormat.PreferredWidth = New TableWidth(LengthUnitConverter.Convert(4, LengthUnit.Inch, LengthUnit.Point), TableWidthUnit.Point)

			' Specify formatting of cells and alignment.
			db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.Dashed, Color.Orange, 2)
			db.CellFormat.BackgroundColor = Color.Magenta
			db.CellFormat.VerticalAlignment = VerticalAlignment.Center
			db.ParagraphFormat.Alignment = HorizontalAlignment.Center

			' Specify height of rows and write text.
			db.RowFormat.Height = New TableRowHeight(15.0F, HeightRule.Exact)

			db.InsertCell()
			db.Write("Attending doctor")
			db.InsertCell()
			db.Write("Date of receipt")
			db.InsertCell()
			db.Write("Discharge date")
			db.EndRow()

			' Specify formatting of cells and alignment.
			db.CellFormat.Borders.SetBorders(MultipleBorderTypes.Outside, BorderStyle.Dotted, Color.Purple, 2)
			db.CellFormat.BackgroundColor = Color.LightGray
			db.CellFormat.VerticalAlignment = VerticalAlignment.Top
			db.ParagraphFormat.Alignment = HorizontalAlignment.Center

			' Specify height of rows and write text.
			db.RowFormat.Height = New TableRowHeight(25.0F, HeightRule.Exact)
			db.InsertCell()
			db.Write(namedoctor)
			db.InsertCell()
			db.Write(dateofreceipt)
			db.InsertCell()
			db.Write(dischargedate)
			db.EndRow()
			db.EndTable()

			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)
			db.InsertSpecialCharacter(SpecialCharacterType.LineBreak)

			db.ParagraphFormat.Alignment = HorizontalAlignment.Right
			Dim sign As Picture = db.InsertImage("..\..\..\sign.png", New Size(50, 25, LengthUnit.Millimeter))

			' Save our document into PDF format.
			Dim filePath As String = "Result.pdf"
			dc.Save(filePath)

			' Open the result for demonstration purposes.
			System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(filePath) With {.UseShellExecute = True})
		End Sub
	End Class
End Namespace

Download


If you need a new code example or have a question: email us at support@sautinsoft.com or ask at Online Chat (right-bottom corner of this page) or use the Form below:



Questions and suggestions from you are always welcome!

We are developing .Net components since 2002. We know PDF, DOCX, RTF, HTML, XLSX and Images formats. If you need any assistance with creating, modifying or converting documents in various formats, we can help you. We will write any code example for you absolutely free.
