Create styles: CharacterStyle, ParagraphStyle and TableStyle


Here we'll show you how create new styles and apply them to the various Elements in DocumentCore.
Let's create a new document with three styles: CharacterStyle , ParagraphStyle and TableStyle.

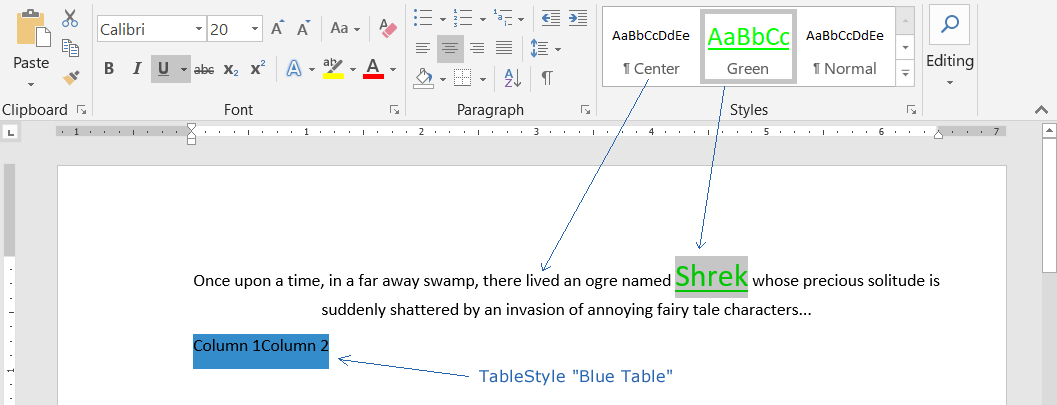

Here is the resulting document (Styles.docx), where we created new styles and applied them for a paragraph, text and table:

Create styles: CharacterStyle, ParagraphStyle and TableStyle

By the way, here you may find How to create and apply ListStyle

Complete code

using SautinSoft.Document;
using SautinSoft.Document.Tables;

namespace Sample
{
    class Sample
    {
        static void Main(string[] args)
        {
            // Get your free 30-day key here:
            // https://sautinsoft.com/start-for-free/

            CreateStyles();
        }
        /// <summary>
        /// This sample shows how to create new styles and apply them to various elements.
        /// </summary>
        /// <remarks>
        /// Details: https://sautinsoft.com/products/document/help/net/developer-guide/styles-create.php
        /// </remarks>
        public static void CreateStyles()
        {
            string documentPath = @"Styles.docx";

            // Let's create document.
            DocumentCore dc = new DocumentCore();

            // Create 3 styles: CharacterStyle, ParagraphStyle and TableStyle

            // 1. Create CharacterStyle
            CharacterStyle charStyle = new CharacterStyle("Green");
            charStyle.CharacterFormat = new CharacterFormat()
            {
                FontName = "Calibri",
                Size = 20,
                FontColor = Color.Green,
                UnderlineStyle = UnderlineType.Single
            };

            // 2. Create ParagraphStyle
            ParagraphStyle parStyle = new ParagraphStyle("Center");
            parStyle.ParagraphFormat.Alignment = HorizontalAlignment.Center;

            // 3. Create TableStyle
            TableStyle tblStyle = new TableStyle("Blue Table");
            tblStyle.CellFormat.BackgroundColor = new Color("#358CCB");

            // 4. Add the styles to the style collection.
            dc.Styles.Add(charStyle);
            dc.Styles.Add(parStyle);
            dc.Styles.Add(tblStyle);

            // 5. Add some document content and apply the styles.
            // Add a paragraph and text.

            dc.Sections.Add(
            new Section(dc,
                new Paragraph(dc,
                new Run(dc, "Once upon a time, in a far away swamp, there lived an ogre named "),
                new Run(dc, "Shrek") { CharacterFormat = { Style = charStyle } },
                new Run(dc, " whose precious solitude is suddenly shattered by an invasion of annoying fairy tale characters..."))
                { ParagraphFormat = { Style = parStyle } }));

            // Add a table (1 x 2).
            Table tbl = new Table(dc, 1, 2);
            tbl.TableFormat.Style = tblStyle;
            tbl.Rows[0].Cells[0].Content.Start.Insert("Column 1");
            tbl.Rows[0].Cells[1].Content.Start.Insert("Column 2");
            dc.Sections[0].Blocks.Add(tbl);

            // Save our document into DOCX format.
            dc.Save(documentPath);

            // Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(documentPath) { UseShellExecute = true });
        }
    }
}

Download

Imports SautinSoft.Document
Imports SautinSoft.Document.Tables

Namespace Sample
    Friend Class Sample
        Shared Sub Main(ByVal args() As String)
            CreateStyles()
        End Sub
        ''' Get your free 30-day key here:
        ''' https://sautinsoft.com/start-for-free/
        ''' <summary>
        ''' This sample shows how to create new styles and apply them to various elements.
        ''' </summary>
        ''' <remarks>
        ''' Details: https://sautinsoft.com/products/document/help/net/developer-guide/styles-create.php
        ''' </remarks>
        Public Shared Sub CreateStyles()
            Dim documentPath As String = "Styles.docx"

            ' Let's create document.
            Dim dc As New DocumentCore()

            ' Create 3 styles: CharacterStyle, ParagraphStyle and TableStyle

            ' 1. Create CharacterStyle
            Dim charStyle As New CharacterStyle("Green")
            charStyle.CharacterFormat = New CharacterFormat() With {
                .FontName = "Calibri",
                .Size = 20,
                .FontColor = Color.Green,
                .UnderlineStyle = UnderlineType.Single
            }

            ' 2. Create ParagraphStyle
            Dim parStyle As New ParagraphStyle("Center")
            parStyle.ParagraphFormat.Alignment = HorizontalAlignment.Center

            ' 3. Create TableStyle
            Dim tblStyle As New TableStyle("Blue Table")
            tblStyle.CellFormat.BackgroundColor = New Color("#358CCB")

            ' 4. Add the styles to the style collection.
            dc.Styles.Add(charStyle)
            dc.Styles.Add(parStyle)
            dc.Styles.Add(tblStyle)

            ' 5. Add some document content and apply the styles.
            ' Add a paragraph and text
            dc.Sections.Add(New Section(dc))
            Dim p As New Paragraph(dc)
            p.ParagraphFormat.Style = parStyle
            dc.Sections(0).Blocks.Add(p)

            p.Inlines.Add(New Run(dc, "Once upon a time, in a far away swamp, there lived an ogre named "))
            Dim r As New Run(dc, "Shrek")
            r.CharacterFormat.Style = charStyle
            p.Inlines.Add(r)
            p.Inlines.Add(New Run(dc, " whose precious solitude is suddenly shattered by an invasion of annoying fairy tale characters..."))

            ' Add a table (1 x 2).
            Dim tbl As New Table(dc, 1, 2)
            tbl.TableFormat.Style = tblStyle
            tbl.Rows(0).Cells(0).Content.Start.Insert("Column 1")
            tbl.Rows(0).Cells(1).Content.Start.Insert("Column 2")
            dc.Sections(0).Blocks.Add(tbl)

            ' Save our document into DOCX format.
            dc.Save(documentPath)

            ' Open the result for demonstration purposes.
            System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(documentPath) With {.UseShellExecute = True})
        End Sub
    End Class
End Namespace

Download
