Transform Scanned PDF to Word in C# and .NET

Converting scanned PDF documents to Word files can be a difficult task, especially if the document contains text in another language. In this article, we will look at how to use SautinSoft.Pdf. NET to perform this task using C# and .NET.

Step-by-step guide:

  1. Load the required language file.
  2. Add SautinSoft.PDF from NuGet.
  3. Load a PDF document.
  4. Extract the images from the first page.
  5. Perform the OCR of the first page.
  6. Save the document in DOCX format.

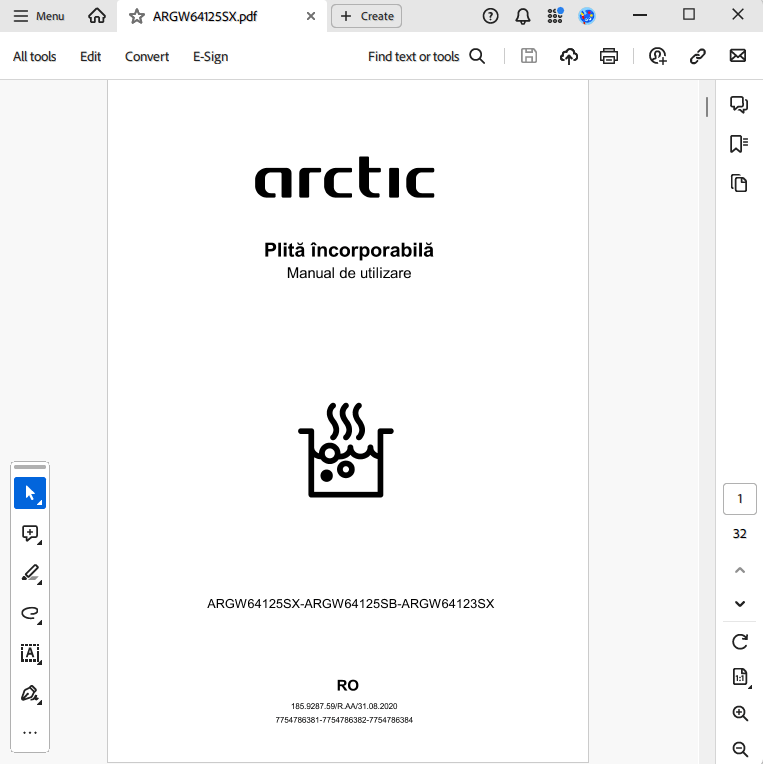

Input file: simple text.pdf

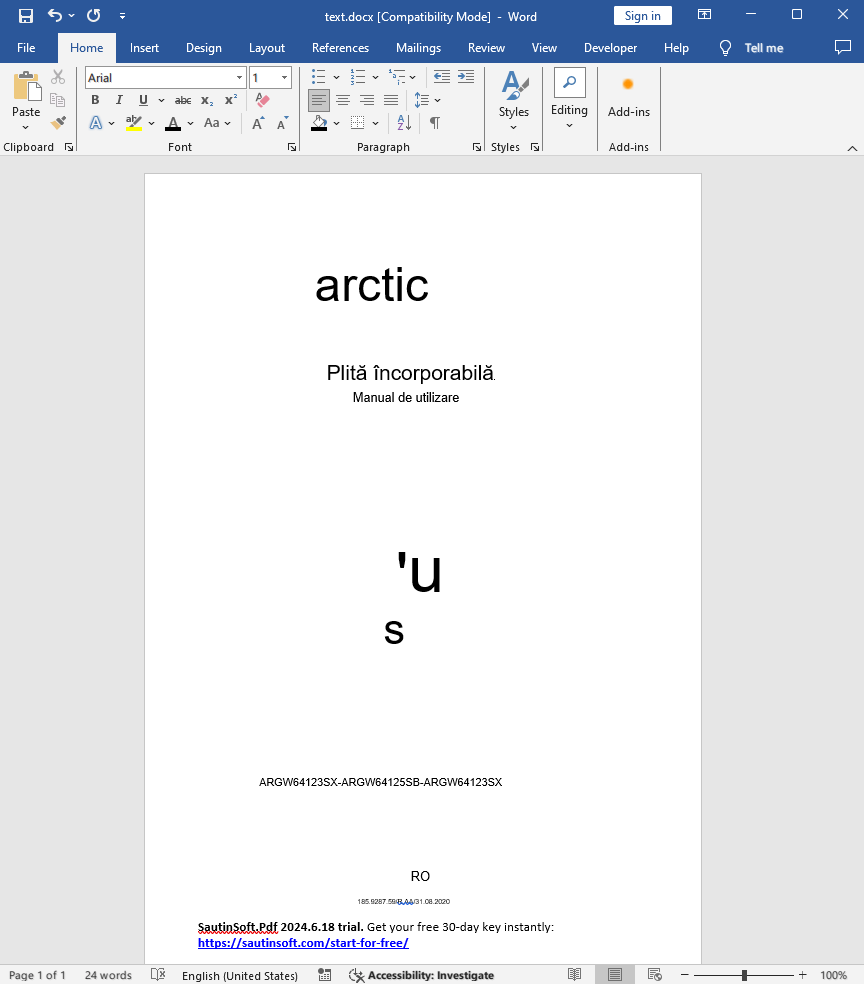

Output result:

Complete code

using SautinSoft.Pdf;
using SautinSoft.Pdf.Content;
using SautinSoft.Pdf.Objects;
using System;
using Tesseract;
using System.Collections.Generic;
using System.IO;
using System.Linq;

namespace OCR
{
    class OCR
    {
        /// <summary>
        /// Convert scanned PDF with other language to Word
        /// </summary>
        /// <remarks>
        /// Details: https://sautinsoft.com/products/pdf/help/net/developer-guide/convert-scanned-pdf-with-other-language-to-word.php
        /// </remarks>
        static void Main()
        {
            try
            {
                //Before executing, download the required language file from the link: https://github.com/tesseract-ocr/tessdata/tree/main
                //Place the file in a folder convenient for you and specify the path to it.

                string tesseractLanguages = "ron";
                string tesseractData = Path.GetFullPath(@"..\..\..\tessdata");
                string tempFile = Path.Combine(tesseractData, Path.GetRandomFileName());
                PdfDocument pdfDocument = PdfDocument.Load(@"..\..\..\ARGW64125SX.pdf");
                PdfDocument pdfDocument1 = new PdfDocument();
                PdfFormattedText text = new PdfFormattedText();

                using (Tesseract.TesseractEngine engine = new Tesseract.TesseractEngine(tesseractData, tesseractLanguages, Tesseract.EngineMode.Default))
                {
                    var collection = pdfDocument.Pages[0].Content.Elements.All().OfType<PdfImageContent>().ToList();
                    var pdfPage1 = pdfDocument1.Pages.Add();
                    pdfPage1.SetMediaBox(pdfDocument.Pages[0].MediaBox.Left, pdfDocument.Pages[0].MediaBox.Bottom, pdfDocument.Pages[0].MediaBox.Right, pdfDocument.Pages[0].MediaBox.Top);
                    for (int i = 0; i < collection.Count(); i++)
                    {
                        engine.DefaultPageSegMode = Tesseract.PageSegMode.Auto;
                        using (MemoryStream ms = new MemoryStream())
                        {
                            collection[i].Save(ms, new ImageSaveOptions());

                            byte[] imgBytes = ms.ToArray();
                            using (Tesseract.Pix img = Tesseract.Pix.LoadFromMemory(imgBytes))
                            {
                                using (var page = engine.Process(img, "Serachablepdf"))
                                {
                                    var st = page.GetText();
                                    double scale = Math.Min(collection[i].Bounds.Width / page.RegionOfInterest.Width, collection[i].Bounds.Height / page.RegionOfInterest.Height);

                                    using (var iter = page.GetIterator())
                                    {
                                        iter.Begin();

                                        do
                                        {
                                            do
                                            {
                                                do
                                                {
                                                    iter.TryGetBoundingBox(PageIteratorLevel.TextLine, out Rect liRect);
                                                    text.FontSize = liRect.Height * scale;
                                                    text.Append(iter.GetText(PageIteratorLevel.TextLine));
                                                    pdfPage1.Content.DrawText(text, new PdfPoint(collection[i].Bounds.Left + liRect.X1 * scale, collection[i].Bounds.Top - liRect.Y1 * scale - text.Height));
                                                    text.Clear();
                                                } while (iter.Next(PageIteratorLevel.Para, PageIteratorLevel.TextLine));
                                            } while (iter.Next(PageIteratorLevel.Block, PageIteratorLevel.Para));
                                        } while (iter.Next(PageIteratorLevel.Block));
                                    }
                                }
                            }
                        }
                        collection[i].Collection.Remove(collection[i]);
                    }
                }
                pdfDocument1.Save(@"text.docx");
                System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(@"text.docx") { UseShellExecute = true });
            }
            catch (Exception e)
            {
                Console.WriteLine();
                Console.WriteLine("Please be sure that you have Language data files (*.traineddata) in your folder \"tessdata\"");
                Console.WriteLine("The Language data files can be download from here: https://github.com/tesseract-ocr/tessdata_fast");
                Console.ReadKey();
                throw new Exception("Error Tesseract: " + e.Message);
            }
            finally
            {

            }
        }
    }
}

Download

Option Infer On

Imports SautinSoft.Pdf
Imports SautinSoft.Pdf.Content
Imports SautinSoft.Pdf.Objects
Imports System
Imports Tesseract
Imports System.Collections.Generic
Imports System.IO
Imports System.Linq

Namespace OCR
	Friend Class OCR
		''' <summary>
		''' Convert scanned PDF with other language to Word
		''' </summary>
		''' <remarks>
		''' Details: https://sautinsoft.com/products/pdf/help/net/developer-guide/convert-scanned-pdf-with-other-language-to-word.php
		''' </remarks>
		Shared Sub Main()
			Try
				'Before executing, download the required language file from the link: https://github.com/tesseract-ocr/tessdata/tree/main
				'Place the file in a folder convenient for you and specify the path to it.

				Dim tesseractLanguages As String = "ron"
				Dim tesseractData As String = Path.GetFullPath("..\..\..\tessdata")
				Dim tempFile As String = Path.Combine(tesseractData, Path.GetRandomFileName())
				Dim pdfDocument As PdfDocument = PdfDocument.Load("..\..\..\ARGW64125SX.pdf")
				Dim pdfDocument1 As New PdfDocument()
				Dim text As New PdfFormattedText()

				Using engine As New Tesseract.TesseractEngine(tesseractData, tesseractLanguages, Tesseract.EngineMode.Default)
					Dim collection = pdfDocument.Pages(0).Content.Elements.All().OfType(Of PdfImageContent)().ToList()
					Dim pdfPage1 = pdfDocument1.Pages.Add()
					pdfPage1.SetMediaBox(pdfDocument.Pages(0).MediaBox.Left, pdfDocument.Pages(0).MediaBox.Bottom, pdfDocument.Pages(0).MediaBox.Right, pdfDocument.Pages(0).MediaBox.Top)
					For i As Integer = 0 To collection.Count() - 1
						engine.DefaultPageSegMode = Tesseract.PageSegMode.Auto
						Using ms As New MemoryStream()
							collection(i).Save(ms, New ImageSaveOptions())

							Dim imgBytes() As Byte = ms.ToArray()
							Using img As Tesseract.Pix = Tesseract.Pix.LoadFromMemory(imgBytes)
								Using page = engine.Process(img, "Serachablepdf")
									Dim st = page.GetText()
									Dim scale As Double = Math.Min(collection(i).Bounds.Width / page.RegionOfInterest.Width, collection(i).Bounds.Height / page.RegionOfInterest.Height)

									Using iter = page.GetIterator()
										iter.Begin()

										Do
											Do
												Do
													Dim liRect As Rect
													iter.TryGetBoundingBox(PageIteratorLevel.TextLine, liRect)
													text.FontSize = liRect.Height * scale
													text.Append(iter.GetText(PageIteratorLevel.TextLine))
													pdfPage1.Content.DrawText(text, New PdfPoint(collection(i).Bounds.Left + liRect.X1 * scale, collection(i).Bounds.Top - liRect.Y1 * scale - text.Height))
													text.Clear()
												Loop While iter.Next(PageIteratorLevel.Para, PageIteratorLevel.TextLine)
											Loop While iter.Next(PageIteratorLevel.Block, PageIteratorLevel.Para)
										Loop While iter.Next(PageIteratorLevel.Block)
									End Using
								End Using
							End Using
						End Using
						collection(i).Collection.Remove(collection(i))
					Next i
				End Using
				pdfDocument1.Save("text.docx")
				System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo("text.docx") With {.UseShellExecute = True})
			Catch e As Exception
				Console.WriteLine()
				Console.WriteLine("Please be sure that you have Language data files (*.traineddata) in your folder ""tessdata""")
				Console.WriteLine("The Language data files can be download from here: https://github.com/tesseract-ocr/tessdata_fast")
				Console.ReadKey()
				Throw New Exception("Error Tesseract: " & e.Message)
			Finally

			End Try
		End Sub
	End Class
End Namespace

Download
