How to convert Excel to PDF and specify page size and margins in C# and .NET


Complete code

using System;
using System.IO;
using SautinSoft;

namespace Sample
{
    class Sample
    {
        static void Main(string[] args)
        {
            // Specify page size and margins.
            ExcelToPdf x = new ExcelToPdf();

            //Fit each sheet to single PDF page, A3 format.
            x.PageStyle.PageSize.A3();
            x.PageStyle.PageScale.Auto();
            x.PageStyle.PageOrientation.Landscape();
            x.PageStyle.PageMarginTop.mm(0);

            // Set PDF as output format.
            x.OutputFormat = SautinSoft.ExcelToPdf.eOutputFormat.Pdf;

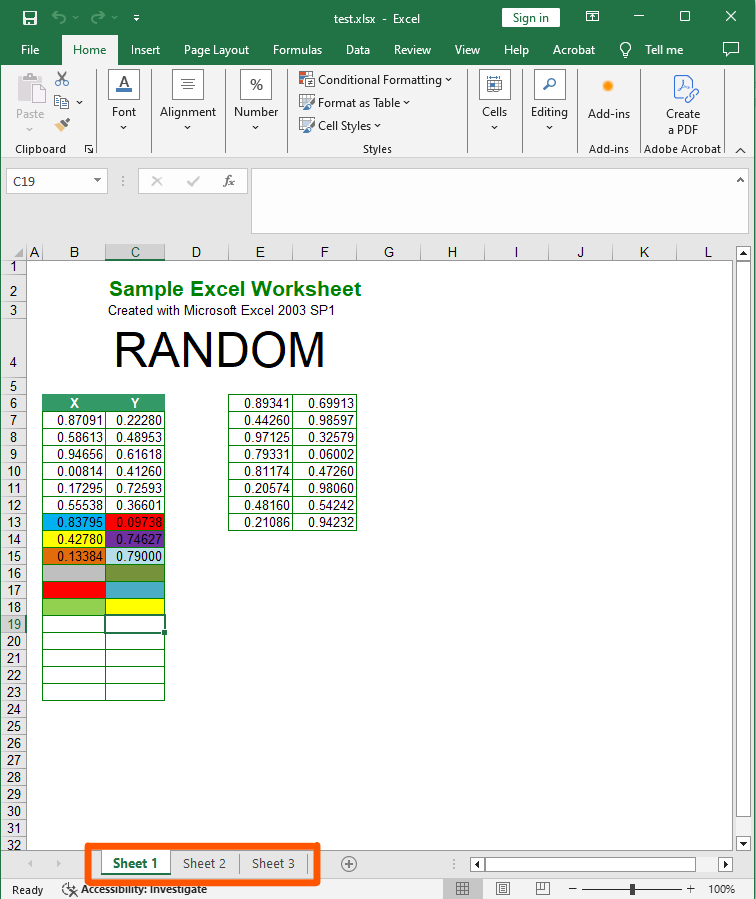

            string excelFile = Path.GetFullPath(@"..\..\..\test.xlsx");

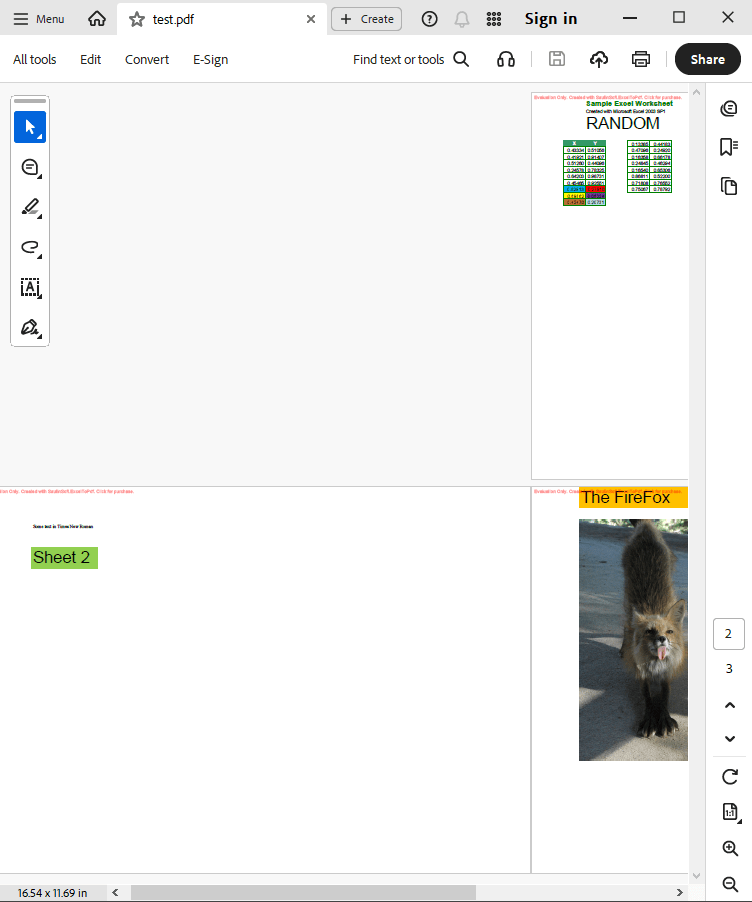

            string pdfFile = Path.ChangeExtension(excelFile, ".pdf"); ;

            try
            {
                x.ConvertFile(excelFile, pdfFile);
                System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo(pdfFile) { UseShellExecute = true });
            }
            catch (Exception ex)
            {
                Console.WriteLine(ex.Message);
                Console.ReadLine();
            }
        }
    }
}

Download

Imports System
Imports System.IO
Imports SautinSoft

Module Sample

    Sub Main()
        ' Specify page size and margins.
        Dim x As New ExcelToPdf()

        'Fit each sheet to single PDF page, A3 format.
        x.PageStyle.PageSize.A3()
        x.PageStyle.PageScale.Auto()
        x.PageStyle.PageOrientation.Landscape()
        x.PageStyle.PageMarginTop.mm(0)

        ' Set PDF as output format.
        x.OutputFormat = SautinSoft.ExcelToPdf.eOutputFormat.Pdf

        Dim excelFile As String = Path.GetFullPath("..\..\..\test.xlsx")
        Dim pdfFile As String = Path.ChangeExtension(excelFile, ".pdf")

        Try
            x.ConvertFile(excelFile, pdfFile)
            System.Diagnostics.Process.Start(New System.Diagnostics.ProcessStartInfo(pdfFile) With {.UseShellExecute = True})
        Catch ex As Exception
            Console.WriteLine(ex.Message)
            Console.ReadLine()
        End Try
    End Sub
End Module

Download
